Enabling SPI on the Raspberry Pi GPIO Interface
This documentation will guide you through the steps required to enable SPI (Serial Peripheral Interface) on a Raspberry Pi using Raspberry Pi OS. SPI is a synchronous serial communication interface commonly used to connect sensors and peripherals to the Raspberry Pi’s GPIO pins. The GPIO (General Purpose Input/Output) on the Raspberry Pi is a set of pins on the board that allow users to interface with various external hardware components, such as sensors, LEDs, and motors, by reading inputs or sending output signals. These pins enable the Raspberry Pi to interact with the physical world and are programmable for a wide range of purposes.
Prerequisites
- Raspberry Pi with Raspberry Pi OS installed
- A monitor, keyboard, and mouse connected to your Raspberry Pi, or remote access through SSH
- Basic knowledge of the terminal on Raspberry Pi OS
Update Your Raspberry Pi OS
Before proceeding, it is always a good idea to update your Raspberry Pi OS to ensure you have the latest packages and firmware. Open a terminal and run the following commands:
sudo apt update
sudo apt full-upgradeAfter the update and upgrade are complete, reboot your Raspberry Pi:
sudo rebootEnable SPI Using raspi-config
SPI is disabled by default on Raspberry Pi OS. You can enable it using the raspi-config tool:
Open a terminal or SSH into your Raspberry Pi.
Run the raspi-config tool with the following command:
sudo raspi-config

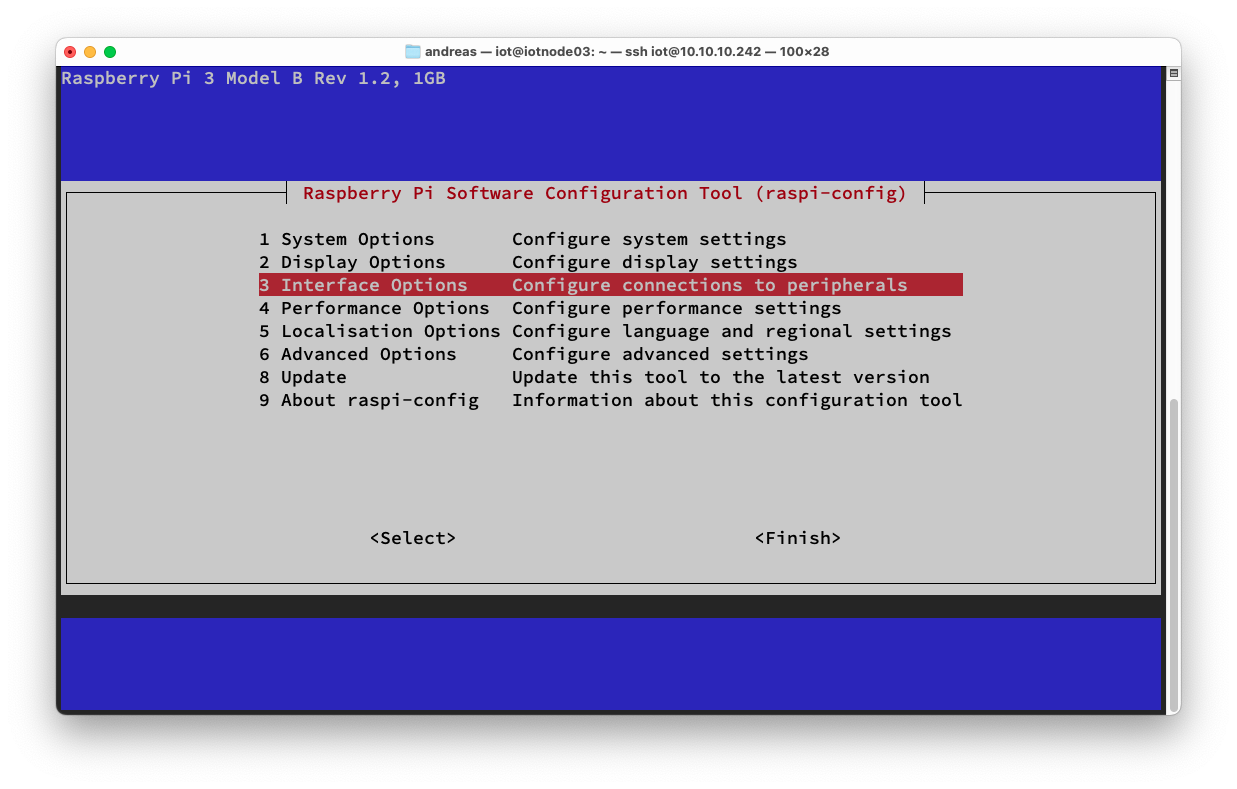

Navigate to Interfacing Options by using the arrow keys and press Enter.

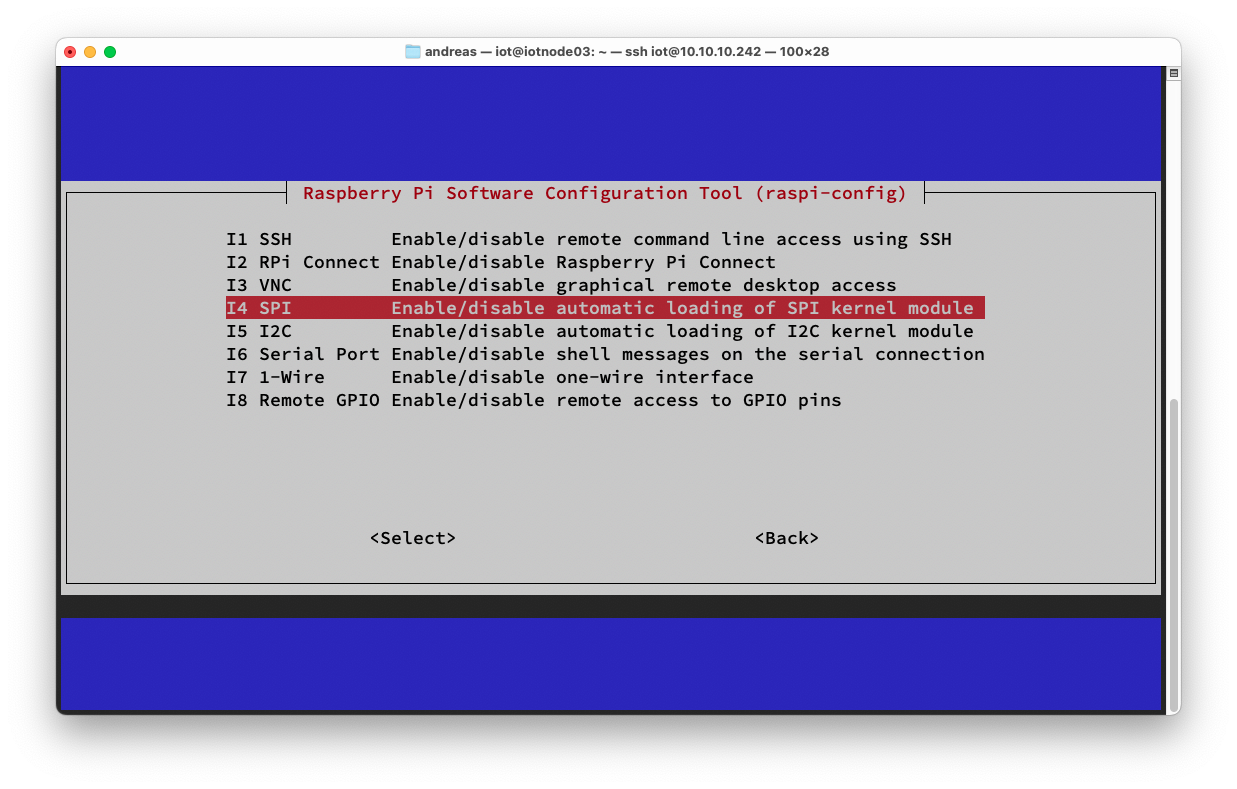

Select SPI from the list and press Enter.

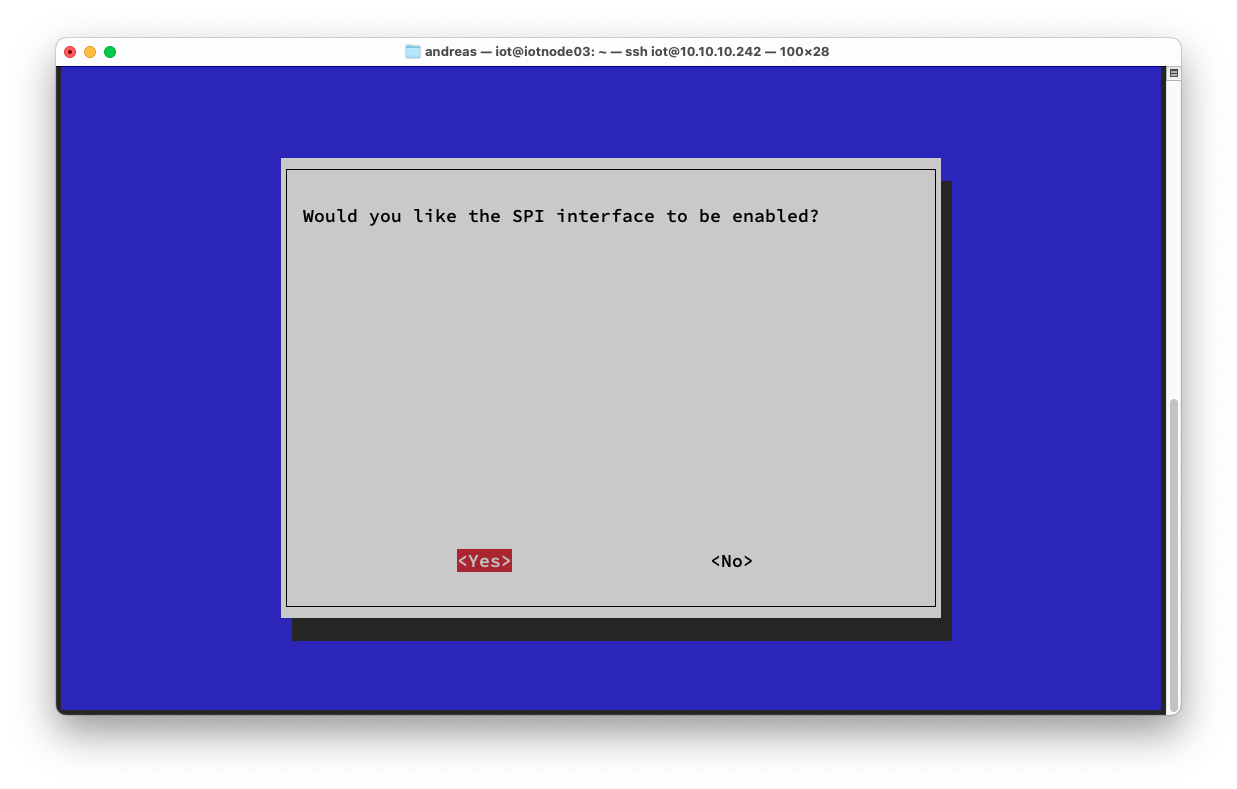

When prompted whether you want to enable SPI, select Yes and press Enter.

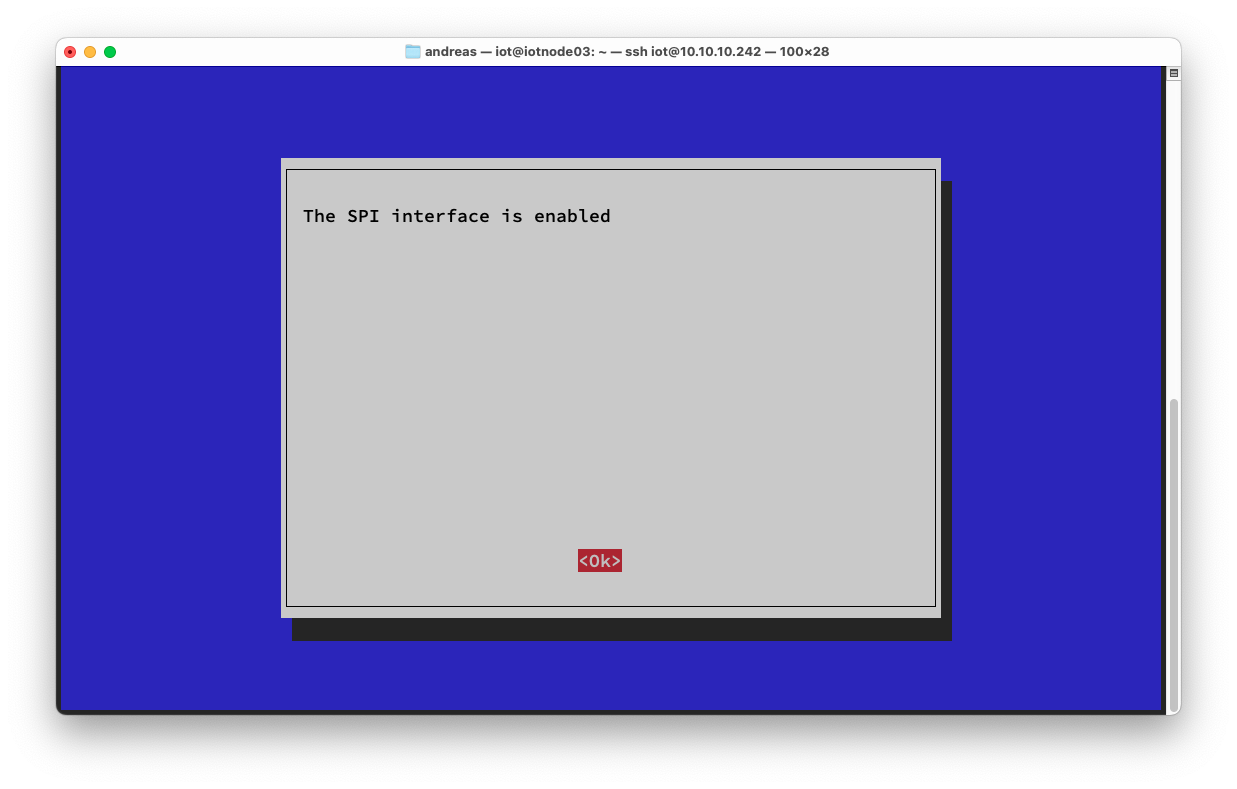

Press Finish to exit the raspi-config tool.
Reboot your Raspberry Pi to apply the changes:
sudo rebootVerify SPI Is Enabled
After rebooting, you can verify that SPI is enabled by checking the devices listed in /dev. Run the following command in the terminal:
ls /dev/spidev*If SPI is enabled correctly, you should see output similar to this:
/dev/spidev0.0
/dev/spidev0.1This indicates that SPI devices are now accessible via /dev/spidev0.0 and /dev/spidev0.1.
You have successfully enabled SPI on your Raspberry Pi’s GPIO interface and can now communicate with SPI devices. You can further explore SPI by interfacing with sensors, displays, and other peripherals using Python or other programming languages supported by Raspberry Pi OS.
